How to reduce lag in a moving average

Hull Moving Average (HMA): The indicator explained

Hull Moving Average: How to reduce lag

Traditional moving averages lag the price activity. But with some clever mathematics the lag can be minimised. Here's how!

By Alan Hull

Back in 2005 when I was working on a new indicator I was temporarily sidetracked by trying to solve the problem of lag in moving averages, the outcome of which was the Hull Moving Average.

Since then the HMA has found its way into charting programs around the world and is regularly discussed on traders bulletin boards in different languages around the world. It was the result of an intellectual curiosity which I placed into the public domain by writing the following article.

The Hull Moving Average solves the age old dilemma of making a moving average more responsive to current price activity whilst maintaining curve smoothness. In fact the HMA almost eliminates lag altogether and manages to improve smoothing at the same time.

To understand how it achieves both of these opposing outcomes simultaneously we need to start with an easily understood frame of reference. The following chart contains a 16 week simple moving average which constantly lags the price activity and has poor smoothness.

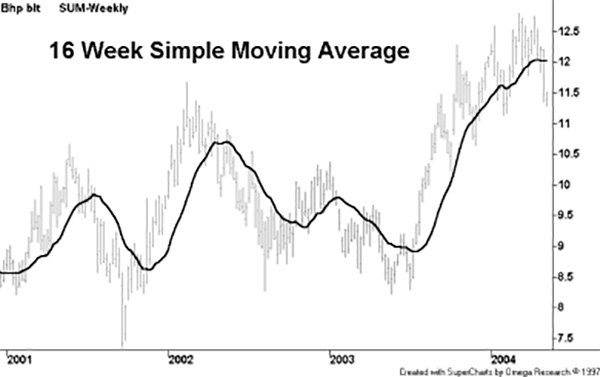

Hull Moving Average: Simple moving average

Firstly, solving the problem of curve smoothing can be done by taking an average of the average.

i.e. 16 period SMA(16 period SMA(Price))

The bad news is that it causes a huge increase in lag as seen below.

Hull Moving Average: Nested simple moving average

Solving the problem of lag is a bit more involved and requires an explanation with numbers rather than charts. Consider a series of 10 numbers from '0' to '9' inclusive and imagine that they are successive price points on a chart with 9 being the most recent price point at the right hand leading edge.

If we take the 10 period simple average of these numbers then, not surprisingly, we will determine the midpoint of 4.5 which significantly lags behind the most recent price point of 9. Here's the clever bit, first let's halve the period of the average to 5 and apply it to the most recent numbers of 5, 6, 7, 8 and 9, the result being the midpoint of 7.

 Hull Moving Average: Concept of reducing lag

Finally, to remove the lag we take the midpoint of 7 and add the difference between the two averages which equals 2.5 (7 - 4.5). This gives a final answer of 9.5 (7 + 2.5) which is a slight overcompensation. But this overcompensation is very handy because it offsets the lagging effect of the nested averaging.

Hence the result of combining these 2 techniques is a near perfect balance between lag reduction and curve smoothing. The HMA manages to keep up with rapid changes in price activity whilst having superior smoothing over an SMA of the same period.

The HMA employs weighted moving averages and dampens the smoothing effect (and resulting lag) by using the square root of the period instead of the actual period itself, as seen below.

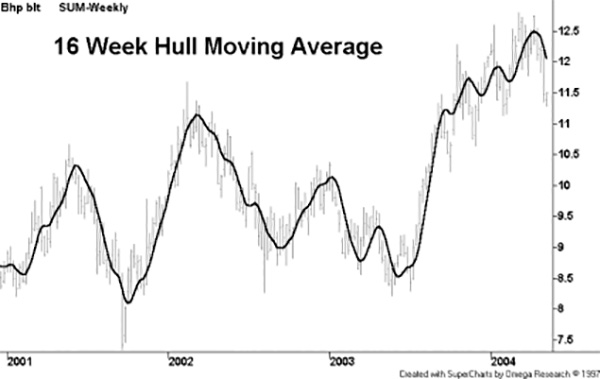

Hull Moving Average

The following formula for the Hull Moving Average (HMA) is for MetaStock but can be easily adapted for use with other charting programs that are capable of custom indicator construction.

Hull Moving Average (HMA) formula

Integer(SquareRoot(Period)) WMA [2 x Integer(Period/2) WMA(Price) - Period WMA(Price)]

MetaStock formula

period:=Input("period",1,200,20);
sqrtperiod:=Sqrt(period);
Mov(2*Mov(C,period/2,W) - Mov(C,period,W),LastValue(sqrtperiod),W);

A simple application for the HMA, given its superior smoothing, would be to employ the turning points as entry/exit signals. However it shouldn't be used to generate crossover signals as this technique relies on lag.
